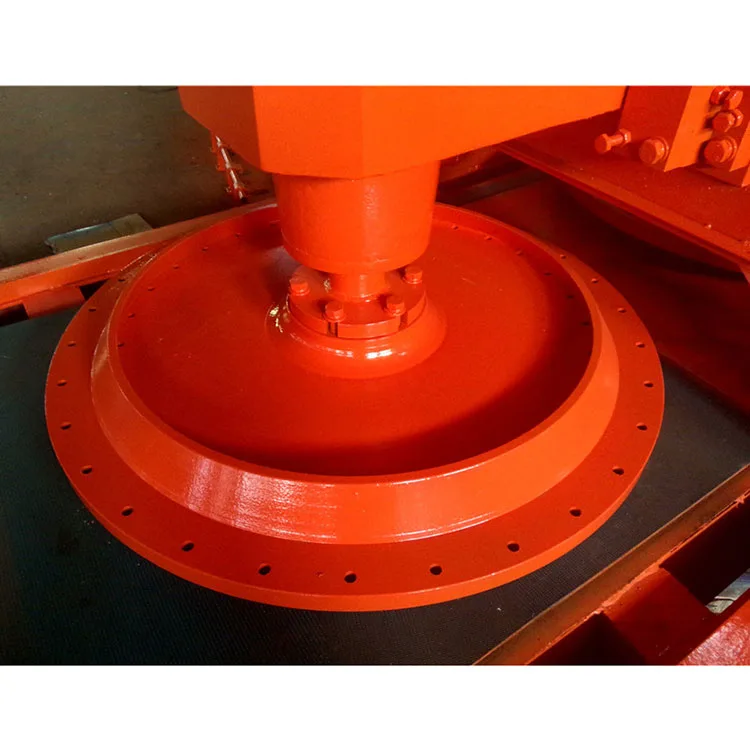

This machine adopts the structure of portaln type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.
|
Two Heads Calibrating Machine |
||||
|
Type |
unit |
DHJ800-2（marble） |
DHJ800-2（granite） |
DHJ1200-2 |
|
Max. cutting width |
mm |
850 |
850 |
1230 |
|
Max. cutting thickness |
mm |
80 |
80 |
80 |
|
Speed of conveyor belt |
mm/min |
0~1600 |
0~1600 |
0~1800 |
|
Power of main motor |
kw |
11~8 |
22~6/18.5~6 |
22~8 |
|
Total power |
kw |
24.24 |
42.74 |
46.24 |
|
Water consumption |
m³/h |
3 |
3 |
3 |
|
Dimension (L×W×H) |
mm |
4100×1600×2200 |
4100×1600×2200 |
5600×2100×2200 |
|
Total weight |
T |
3.8 |
4.3 |
6.3 |
